Description
Specifications
| SKU | 970575701 |
|---|---|
| SIZE | No |
| MANUFACTURER | Husqvarna |

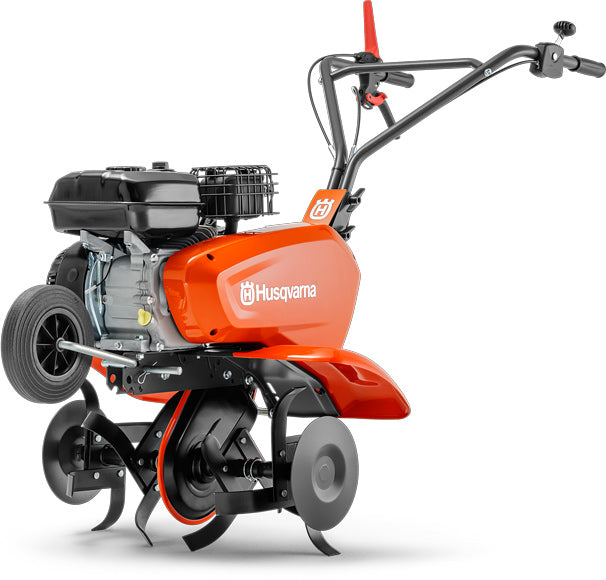

Features
Plant guards
Protect plants outside the working area.
Reverse gearbox
Improves maneuverability and control.
Detachable transmission
Detachable transmission housing with lubrication nipple.
Tine shield
Minimizes debris spray from the rotating tines.
OHV engine
Easy-to-start, powerful overhead-valve engine.
Handlebar-mounted gear selection
Ergonomic handle with easy-access controls.
Foldable handlebar
For easy storage and transport.
Drag bar
Easy-adjust drag bar, for different working conditions.
Double carry handles
Facilitates lifting and transport.
Transport wheel
Simplifies transport. Easy to raise during operation.
Versatility through accessories
With different optional accessories this machine can be converted into an ultimate garden tool performing ridging, edging and moss raking.
Technical Data
| Technical data | |
|---|---|
| Engine | |
| Engine manufacturer | Briggs & Stratton |
| Engine type | Classic |
| Engine name | CR750 |
| Cylinder displacement | 163 cm³ / 9.95 cu.inch |
| Net power at preset rpm | 3.3 kW @ 3300 rpm |
| Air filter type | Oil bath |
| Fuel tank volume | 3 lit / 0.16 gal. |
| Fuel Type | Gasoline |
| Engine oil capacity (L) | 0.6 |
| Rotational speed | 104 rpm |
| Transmission | |
| Transmission type | Chain/Manual |
| Transmission steps forward | 1 |
| Transmission steps reverse | 1 |
| Capacity | |
| Cultivator type | Front-tine |
| Number of tines | 4 |
| Tine diameter | 320 mm / 12.6 inch |
| Working width | 60 cm / 23.62 inch |
| Working depth | 30 cm / 11.81 " |
| Equipment | |
| Vertically adjustable handlebar | Yes |
| Horizontally adjustable handlebar | Yes |
| Foldable handlebar | Yes |
| Handlebar-mounted gear selection | Yes |
| Reverse gearbox | Yes |
| Detachable transmission | Yes |
| Transport wheel/s | 1 |
| Drag bar | Yes |
| Plant guards | Yes |
| Ridger | Available as accessory (with metal wheels) |
| Dimensions | |
| Weight | 46 kg / 101.41 lbs |
| Sound and noise data | |
| Sound pressure level at operators ear | 82 dB(A) |
| Sound power level, measured | 92.5 dB(A) |
| Sound power level, guaranteed (LWA) | 93 dB(A) |
